Many people are seeking INPA/Ediabas Windows 7 64-bit installation guide. Here you can download free INPA 5.02 and Ediabas 6.4.7 and check the installation guide step-by-step.
Installation:
Step 1: Install software setup
Open the DVD and go to the Program installation folder. Rightclick on setup.exe and select
Properties. And go to the tab Compatibility. Choose Run this program as, Windows XP
service pack 3. Choose OK and run setup.exe
Step 2: Install BMW Standard Tools
Bmw Inpa 4.4 750
Select English language and follow screen prompts

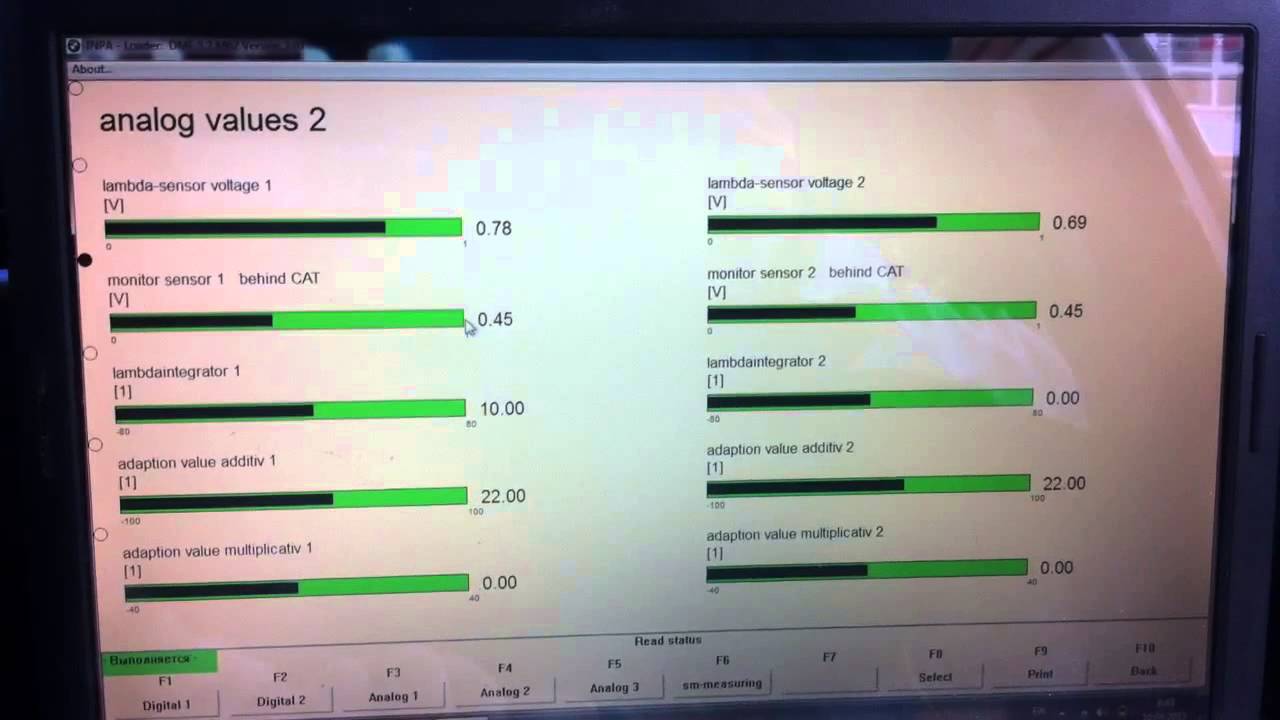

The setup is for 'BMW Standard Tools'. Once complete, run 'instprog.exe' in referenz install folder and update EDIABAS/INPA to 6.4.7 and 5.0.1 (it says this but it is actually 5.0.2). INPA 4.4.7 would not run on my x64 machine, but 5.0.2 runs fine (as per screenshot above). Car Compatibility BMW 1 Series (E81, E82, E87, E88, F20, F21, F52, F40) BMW 2 Series (F22, F45, F46) BMW 3 Series (E46, E90, E91, E92, E93, F30, F31, F34, G20) BMW 4. BMW INPA Ediabas 5.0.2 download, inpa 5.06 download, inpa 6.4.7 download hereand install it on Windows XP/ Vista or Windows 7/ 8/ 10 (32bit or 64bit), to get it work with K+DCAN USB cable.
Bmw Inpa 4.4 750
Choose Available Hardware Interface as STD:OBD when come across Hardware Interface Setting screen
Set OBD COM port to COM1 if you are using a USB to serial adapter tick
the box in next screen
Windows will ask you for previous installed folder of Ediabas and INPA, choose the
folders. This should be C:Ediabas and C:INPA. Proceed the install and when asked to reboot
computer, reboot your computer!
Step 3: Update Ediabas and INPA
Go to the software DVD and open folder Referenz then Install and run Instprog.exe.
On the screen prompted choose OK then choose language and Continue
Then choose C: as destination drive, this should not be changed!
The choose BMW Group Rectification Programs UK for Europe, USA for USA
Then choose update boxes next to Ediabas and INPA
Continue with the installation and press End when finished. A folder will open, close this folder.
Bmw Inpa 4.4 7 Speed
Step 4: OBDSetup.exe
Browse C:EdiabasHardwareOBD and run obdsetup.exe, a screen similar like this should
appear. If not you need to add some register values that are also in the downloaded file!
Run OBDsetup registervalues Windows 7, when prompted to be sure this values should be added press Yes.
Then run OBDSetup again to check if everything is OK now!
Bmw Inpa 4.4 7 Seater
Step 5: Ediabas.ini
When you want to use INPA with DISGT1 you have to copy the ediabas.ini file from the
downloaded file to C:EdiabasBin.
The settings in this file are:
LoadWin32 = 1
Interface =STD:OBD
;—————————————————————————–
; RemoteHost
; Description : server address/name
; Default = diaghead
RemoteHost = 192.168.68.1
;—————————————————————————–
; Port
; Description : IP communication port
; Value : 1000 < port < 30000
; Default =
Port = 6801
Done!
